Tyrant slide-in optic plates with Rear Set & High Front Sight

• Compatible Models: Tyrant 2011 Hi-Capa series pistols

The SIO™ system integrates the optic directly into the slide structure.This creates a lower mounting position than traditional adapter
plates, significantly improving target acquisition speed and reducing
parallax.

• Extremely low optic mounting axis – the red dot sits significantly lower than traditional adapter plates, reducing parallax and improving natural aiming.
• Zinc alloy construction offers good rigidity and balanced weight, durable without affecting slide cycling.
• Package Includes: Tyrant slide-in optic plates with Rear Set, High Front Sight.
• Compatible Optics：

Trijicon standard－

Trijicon RMR

Trijicon SRO

Holosun 407C、507C

Docter/Noblex standard

Vortex Venom

Burris FAstfire 4

Docter Sight II Plus

Noblex Sight C

Shield RMS/SMS standard－

Shield RMSc

Shield SMSc

Sig Sauer Romeo Zero

C-more RTS/STS standard－

C-More STS2

C-More RTS2

Trijicon RMRcc

Included Parts (Part numbers correspond to exploded view):

TP-08：RMR Rail Plate ×1
TP-09：Rail Plate Pin ×1
TP-10：Set Screw (Socket Set Screw) M2.5 x 5mm ×1
L Shape Hex Key, 1.3mm ×1

TP-12：High Front Sight Screw M1.4 x 10mm ×1 (cross pan head, fits PH000 screwdriver, screwdriver not included)
TP-13：High Front Sight ×1

Screws for Optic to Mounting Plate:

Socket Button Head M3 x P0.5 x 8mm Screw ×2
Socket Countersunk Head M3 x P0.5 x 8mm Screw ×2
Socket Countersunk Head M3 x P0.5 x 10mm Screw ×2

Customer Questions & Answers

Questions 1: Does it use a traditional screw-mounted optic plate?




No. The Tyrant SIO™ system uses a slide-integrated interface. The optic plate is guided and supported by the nozzle house structure itself, resulting in a lower and more stable mounting position.

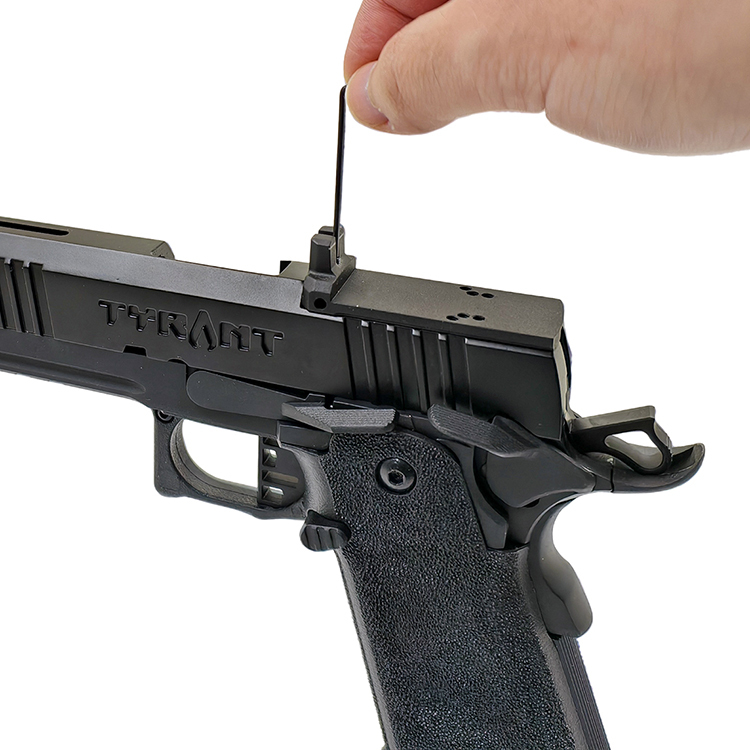

Questions 2: How to change it?

Please refer to the image.  A quick note when swapping the RMR plate — there is a set screw that needs to be properly tightened to ensure everything stays aligned and secure.
